Products

RIB

30 Ton Class Port Patrol
  • Excellent maneuverability
  • Supplied to Pilot and government offices
  • Various types and models
  • High performance and safety

Specifications

※ Scroll left / right to see the contents.
Model Dimensions(L×B×D) Capacity Manufacturing Period Recommended Engine Lightship Weight Hull Material Fuel Capacity Seaworthy Max. Speed
HN-2110 21.1m x 5.0m x 2.15m 14P 10 month 1224PS x 2250RPM x 2SET Abt. 33.0 ton F.R.P. 2300L x 2 1~2m wave ehight 27.5knots or higher

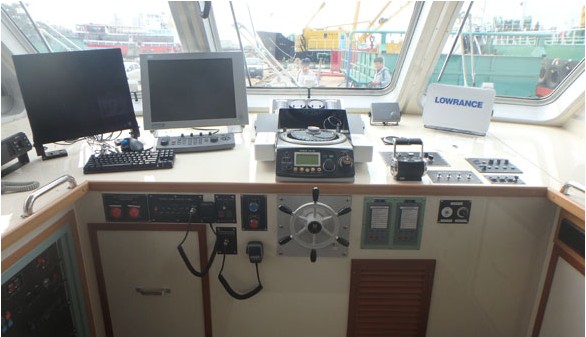

Main Systems : Crew Room, Genset, ECDIS, Auto Pilot, Patrol Light & Amp, Radar & DGPS, Amp & Horn, V.H.F / DSC, AIS, Search Light, Satellite-TV, Search Light

Blueprint

Video
